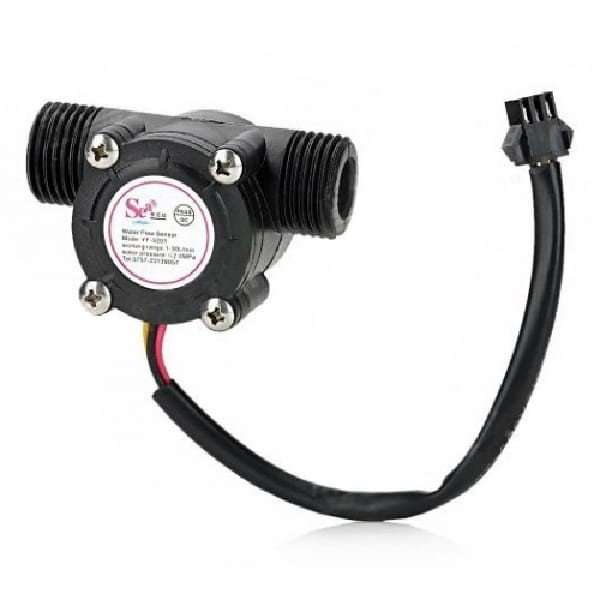

Water Flow Sensor

This is YF-S201 Water Flow meter Measurement Sensor with 1-30Leter/min Flow Rate in black colour. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

By counting the pulses from the output of the sensor, you can easily calculate water flow. Each pulse is approximately 2.25 millilitres.

Connection:

Red wire: +5V
Black wire: GND
Yellow wire: PWM output

Features :

1. The simple and compact module.
2. Easy to Install.
3. High Sealing Performance.
4. High-Quality Hall Effect Sensor.
