Description

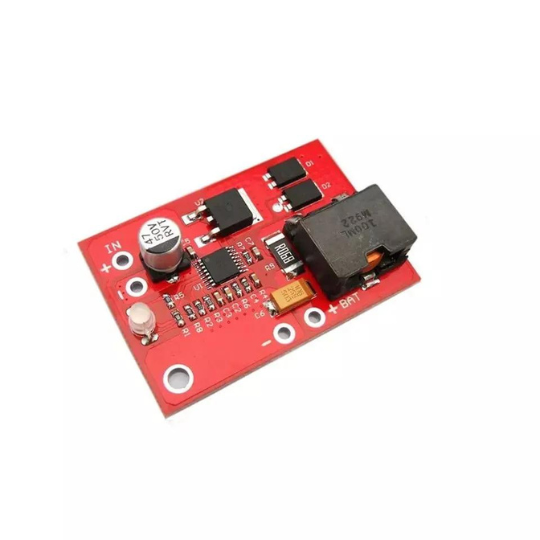

12V MPPT Solar Charge Controller for 3S Lithium ion Battery ensures that the photovoltaic cell always outputs the maximum power in order to fully utilize the solar energy when the light intensity changes. In the general case, the MPPT function needs to be implemented with a switch mode DC-DC converter to maximize the product (output power) of the output voltage and the charging current.

This 12V MPPT Solar Charge Controller for 3S Lithium ion Battery uses CN3722 chip, which adopts the switching step-down mode DC-DC conversion to realize the maximum power point tracking function of photovoltaic cells. Its input voltage can reach up to 28V, which is very suitable for applications with large difference between input voltage and battery voltage.

Features of 12V MPPT Solar Charge Controller for 3S Lithium ion Battery
This 12V MPPT Solar Charge Controller for 3S Lithium ion Battery uses charge management chip, with turbulence, constant current, constant voltage charge management
Adopt imported high frequency low conduction internal resistance double MOS tube, high current diode, high efficiency flat high power inductor, alloy current detection resistance
Extra large aluminum heat sink at the bottom to ensure long-term stable operation at high currents
high speed and efficient charging
Dual status indicator, when the battery is not connected, the red light is always on, the red light is on when charging, and the green light is on
IN+ input positive, IN- input negative (SOLAR)
BAT+ battery positive, BA- battery negative
