Description

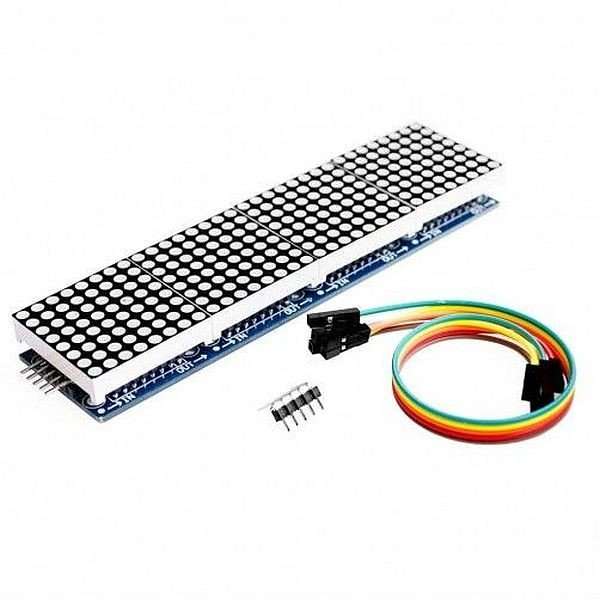

 MATRIX MODULE FOR ARDUINO/IOT MICROCONTROLLER 4 IN ONE DISPLAY WITH 5P LINE

WIRING INSTRUCTIONS:

UNO R3 pin MATRIX Dispaly PIN

10 CS

11 DIN

13 CLK

GND GND

5V VCC

NOTE:

• A SINGLE MODULE CAN DRIVE A 8X8 DOT MATRIX COMMON CATHODE
• OPERATING VOLTAGE: 5V
• A SINGLE MODULE CAN DRIVE A 8X8 DOT MATRIX COMMON CATHODE
• OPERATING VOLTAGE: 5V
• DIMENSIONS: 12.8X12.8X1.3CM/
• FIXING SCREWS WITH 64 HOLES WITH A DIAMETER 3MM
• MODULE WITH INPUT AND OUTPUT INTERFACES, SUPPORT FOR CASCADING MULTIPLE MODULES
