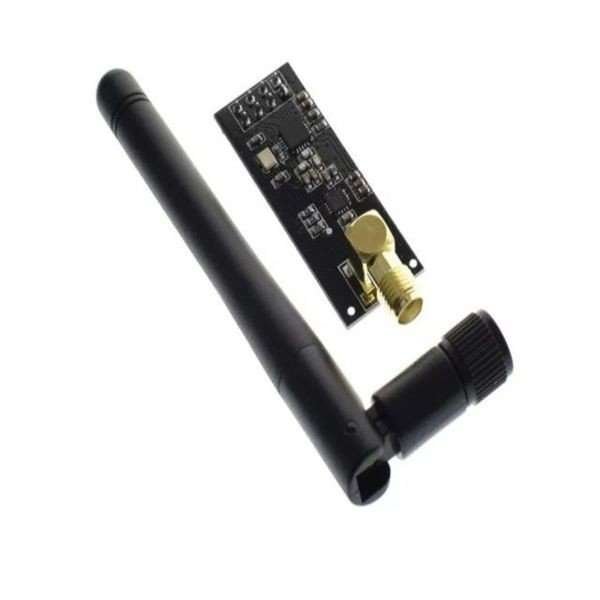

NRF24L01 Longrange

NRF24L01 Longrange used for DIY project.

Nrf24l01L wireless module, use NRF24l01 IC from Nordic, work at 2.4Ghz worldwild open ISM band, working data speed up to 2 Mbps, 125 channel can reach multiple channel and jumping channel needs, operation voltage 3.3-3.6V, transmit power up to 20 dBm, then sensitivity can reach -86dbm at 2 Mps high speed.

This module is designed for long distance as well as high speed transferring, pins and interface are fully compatible with normal NRF24L01+ module, no need extra control pins. (two extra pins without silk print can connect to GND)

Compact size, easy to use, simply extend the communication distance.

Features of Module:

• Voltage 3-3.6v (recommended 3.3v) V
• +20 DBm maximum output power
• Emission mode operating current (peak) 115 MA
• Receive mode operating current (peak) 45 MA
• Power-down mode current 4.2 UA
• Operating temperature -20 ° C
• Receiving the Spirit of 2Mbps mode -92 dBm
• Receiving the Spirit of 1Mbps mode -95 dBm
• Receiving the Spirit of 250Kbps mode -104 dBm
• Support PA/LNA
  • PA gain of 20 dB
  • LNA gain of 10 dB
• Coefficient of 2.6 dB LNA voice
• Antenna gain (peak) 2 Dbi
• 2MB rates (Open area) distance 520 m

Feature of NRF24L01:

• 2.4Ghz worldwide free open ISM band
• High working speed up to 2Mbps, high efficient GFSK modulation, can transfer audio or video.
• 125 channels for multiple communication or jumping channels communication.
• Embedded CRC error-check and point to mutiple point communication control
• operation voltage at 3.0-3.6V (3V3)
• External 2.4Ghz antenna, compact size 18mm * 30mm
• Module can set address by software, only output data when device receive right address, can directly connect to any MCU, and easy to programmer.
