Description

Peltier Module 12706

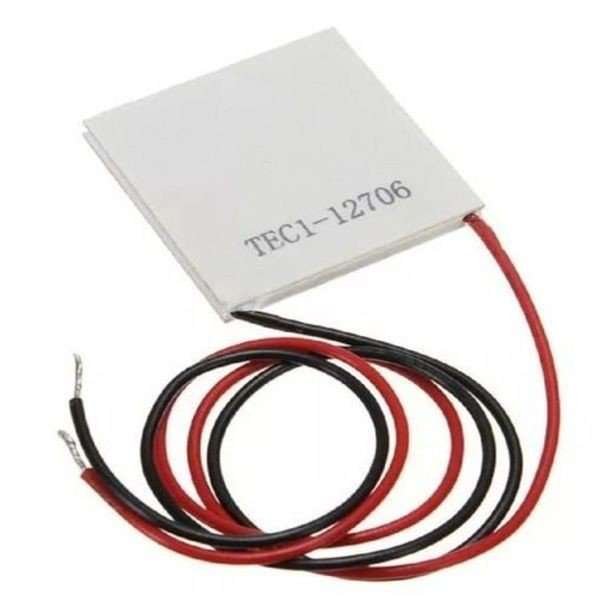

Thermoelectric Cooler (Peltier Module) – TEC1-12706

Utilized in high-end consumer, commercial, and military-grade applications for extreme performance and maximum energy efficiency, TEC1 Peltier Modules provide unmatched temperature differentials (DTmax) in cooling or heating applications. Hebei TEC1-12706 Peltier Modules from electron.com measure 40x40x3.9mm and offer 68˚C Delta T max (DTmax) at a maximum operating temperature of 138˚C. Capable of performing to exacting specifications, cooling or heating with precision in extreme environments, TEC1 Peltier Modules from electron.com have rapidly become an industry standard for numerous exacting thermoelectrics.

TEC1-12706 Specifications and Operational Parameters

• Size: 40x40x3.9mm (WxDxH)
• Imax: 6.4A
• Umax: 15.4V
• Qmax: (ΔT =0) 63 W ΔT max. = 68°C
