Power Supply for Raspberry Pi

1,800.00 (incl GST)

1,525.42 (+18% GST extra)

Lithium Battery Pack Expansion Board Power Supply with Switch for Raspberry Pi 3,2 Model B,1 Model B+ Banana Pi

Availability: Out of stock SKU: IWP-00344 Categories: , ,

Email when stock available

Description

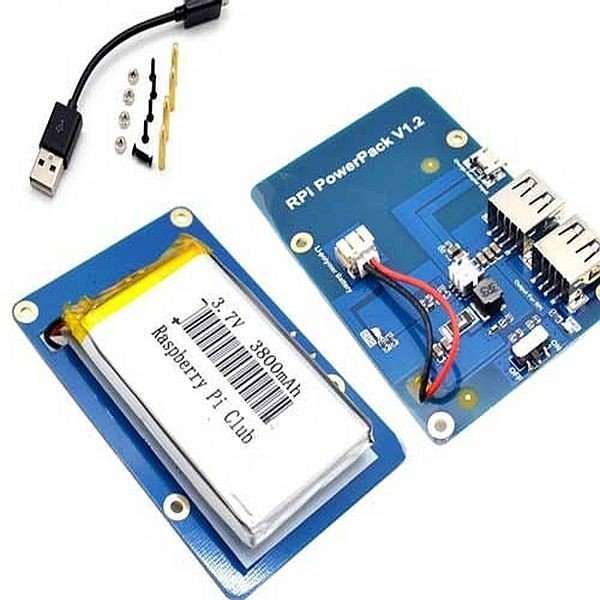

A power module especially designed for Raspberry Pi, which enables using the Raspberry Pi in a moveable manner

· Battery capacity: 3800mAH (maximum); Output current: 1.8A

· Output voltage (no load): 5.1V ± 0.1V

· Double USB outputs, one for the Raspberry Pi, the other for the embedded LCD screen

· Coming with fastening standoffs, screws and nut, so you can stack the Raspberry Pi board on the module

Technical Details

Introduction
The power module is designed for the Raspberry Pi 3 Model B specially, allowing the master board to work offline for up to 9 hours. It’s not only supplying for Raspberry Pi; this board has 2 USB type-A ports – one supplies power for the Raspberry Pi and the other for the embedded LCD screen.

The module integrates a Li-ion battery charger IC, a boost management chip. And it is developed in strict accordance with the size of the international Raspberry Pi expansion board HAT, using only simple copper standoffs to install multi-layer Raspberry Pi boards.

Specifications:
Battery capacity: 3800mAH
Maximum discharge current: 1.8A
No-load output voltage: 5.1V ± 0.1V
Standard charging current/voltage: 1.0A/5.0V
Cut-off voltage of fully charging the Li-ion battery: 4.18V – 4.2V

1* Lithium Battery Expansion board (with lithium battery)

4* Copper standoff

4*Screw

4* Nut

Additional information

Weight0.18 kg
