Description

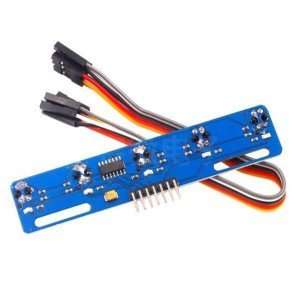

5 channel tracing sensor

infrared sensor module tracing tracking sensor TCRT5000L 5-channel black and white line identification transmission.

Working voltage: 3.3 V~5 V.
Output mode: digital signal
Measuring distance: 1 CM~1.5 CM
Detection probe: TCRT5000L
Detection signal: low line black line detection, white line detection is high, except for low output detection range
Status LED: Black line detection LED is off, white light detection LED light
Connector
1. VCC: VCC is an input power port that can be connected to 3.3 V~5 V
2. GND: GND is the negative input of the power supply
3. OUT1~5: OUT is the signal output port, MCU port I / O port
