Bi-Directional logic Level Converter
₹35.00 (incl GST)
₹29.66 (+18% GST extra)

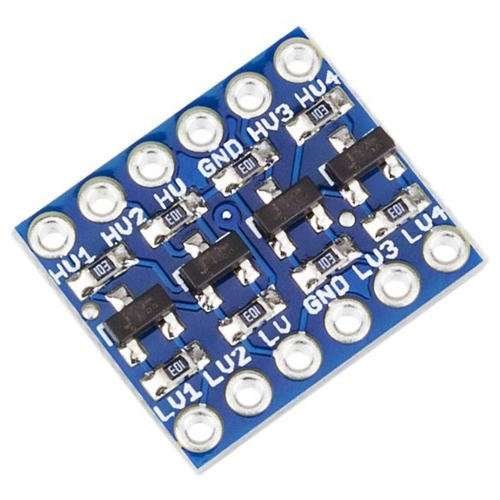

Bi-Directional logic Level Converter 4 Channel 5V TTL and 3.3V TTL
- Description
- Additional information
- Reviews (0)
Description
Bi-Directional logic Level Converter
This Level Converter- 4 Channel features four high speed bi-directional 4 channels, allowing for safe and easy communication between devices operating at different logic levels.
The logic level converter circuit convert signals as low as 1.8 V to as high as 5 V and vice versa, and its four channels are enough to support most common bidirectional and unidirectional digital interfaces, including I²C, SPI, and asynchronous TTL serial.
If you’ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be? A bi-directional Level Converter- 4 Channel is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successful
How to use:
- High voltage (5V for example) to the ‘HV’ pin
- Low voltage (3.3V for example) to ‘LV’
- Ground from the system to the ‘GND’ pin.
Specifications and Features:
Mutual transform between 5V TTL and 3.3V TTL
Four channels of logic and high voltage low voltage logic can two-way transform
Portable and lightness, with 2 rows 6 pin contact pins
Level Converter- 4 ChannelCompatible with the bread plate, can be used directly put on the breadboard
4 Channel Module (great for I2C or SPI) and will work with all micro controllers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
Additional information
| Weight | 0.01 kg |
|---|
