Description

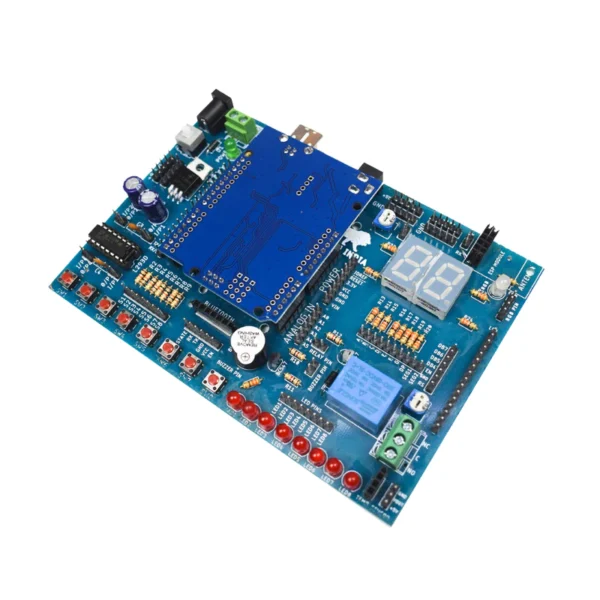

This is an Arduino UNO/Nano Development Shield Board without UNO Board. All Pins are Breakout Pins are available at Female bugs Connector, which can be used as the main board for developing applications. The most important feature of this board is that we can do as many practicals on a single board without a breadboard like IoT, sensors, gsm, GPS etc. This Arduino UNO/Nano Shield board’s construction includes a relay, 2-seven-segment displays, a buzzer, an L293D motor driver, a Bluetooth & ESP insert port, an 8-input switch with output indication etc. Features

• Compatible with Arduino NANO and UNO.

• All digital and analog pins break out.

• Compact size.

• It comes without UNO Board

Project ideas

• Dc Motor Operates with L293D IC

• Output Relay Control

• Seven-Segment Display

• BCD Converter

• Timer Control

• Timer Relay Control

• On/Off Switch with LED Indication

• LED Dimmer

• Counter

• Timer Counter

• LED Fadness

• IR Transmitter & Receiver

• Bluetooth

• ESP Wireless

• Sensors

Package Included: 1 x NANO/UNO Development Board Shield Specifications

Product	Arduino Nano/UNO Development Board Shield
Compatible Board	Arduino Nano & UNO
Type	Development Board
CPU Socket	DIP
Output Voltage	+5V, +3.3V, +9V, +12V
Input Voltage	+9V/+12V
Programmable Button	No
Dimension (mm)	152 x 106 x 18(mm)
Make	Made in India
