Infrared (IR) technology is widely used in remote controls, automation systems, and IoT devices. In this TSOP ESP32 tutorial, you will learn how to connect a TSOP IR receiver sensor with ESP32 and decode signals from any IR remote control. This TSOP ESP32 tutorial will guide you through the setup process, ensuring you understand how to utilize the TSOP ESP32 tutorial effectively.

What is a TSOP Sensor?

Understanding the TSOP ESP32 tutorial is crucial for anyone interested in developing IoT projects. It helps you explore the full capabilities of the TSOP ESP32 tutorial, making your projects more interactive.

Infrared communication is a simple yet effective way to transmit data wirelessly. IR signals are modulated to carry information, which the TSOP sensor can decode. This modulation typically occurs at a frequency of 38kHz, allowing the sensor to filter out other signals and focus solely on the IR data from the remote control.

A TSOP sensor (e.g., TSOP1838) is an IR receiver module that detects infrared signals and converts them into digital output readable by microcontrollers like ESP32.

Features:

• Operates at 38kHz frequency
• Built-in noise filtering
• Low power consumption
• Easy integration with ESP32

TSOP Sensor Pinout

In this TSOP ESP32 tutorial, you will discover how to effectively integrate various components for a seamless experience.

   _______
  |       |
  | TSOP  |
  |_______|
   | | |
   1 2 3

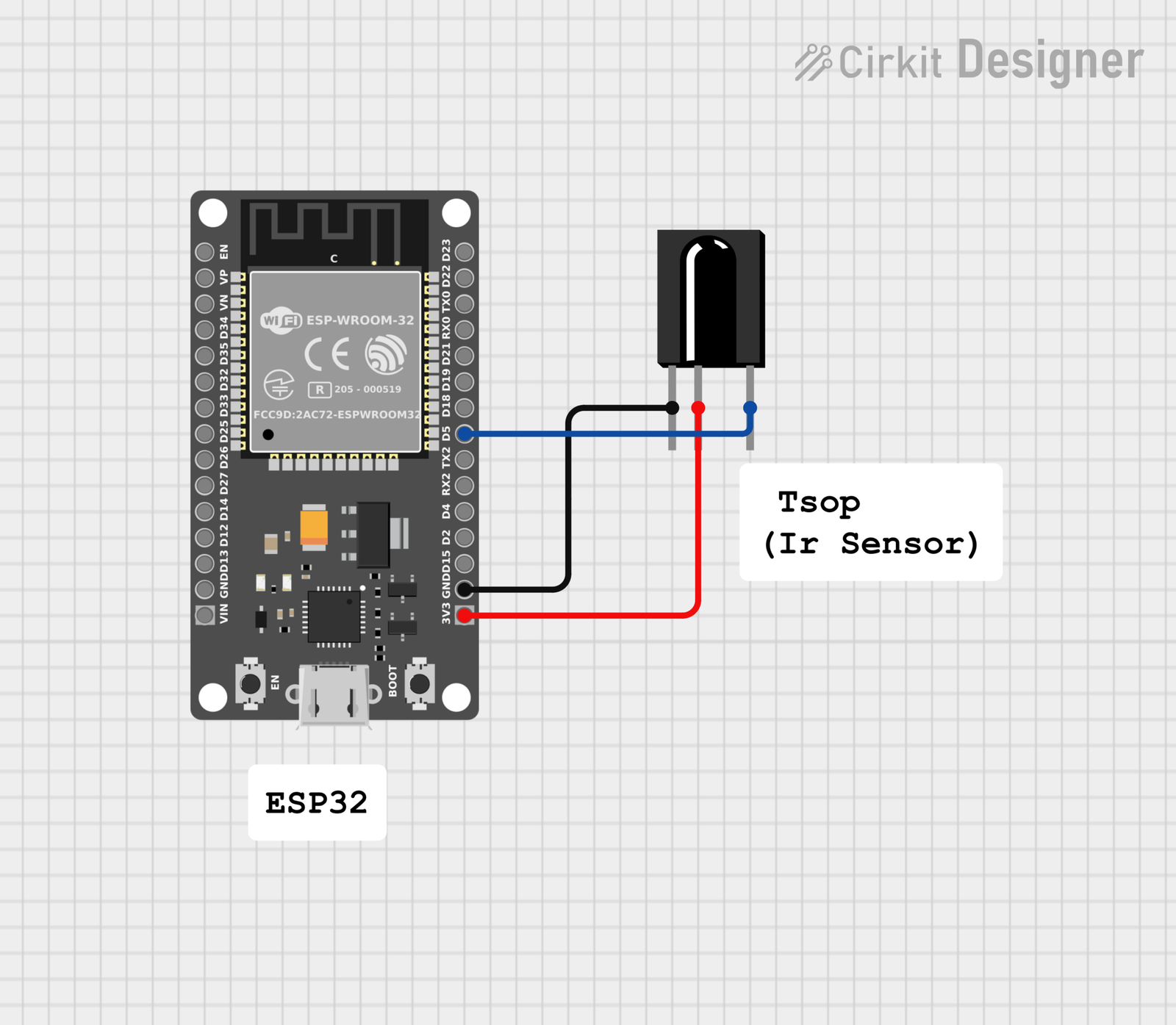

ESP32 Connection

👉 You can also use: GPIO 4, 5, 18, 19, 21, 22, 23

Required Components

• ESP32 Development Board
• TSOP1838 IR Sensor
• IR Remote
• Jumper Wires

This TSOP ESP32 tutorial will also cover troubleshooting tips to ensure your project runs smoothly.

Arduino Code (ESP32 + TSOP IR Decode)

#include <IRremoteESP8266.h>
#include <IRrecv.h>
#include <IRutils.h>

const uint16_t RECV_PIN = 5;  // GPIO5 for ESP32

IRrecv irrecv(RECV_PIN);
decode_results results;

void setup() {
  Serial.begin(115200);
  irrecv.enableIRIn();  // Start receiver
  Serial.println("IR Receiver Ready...");
}

void loop() {
  if (irrecv.decode(&results)) {

    Serial.print("IR Code: ");
    Serial.println(results.value, HEX);

    // Optional: detailed decode info
    Serial.println(resultToHumanReadableBasic(&results));

    irrecv.resume();  // Receive next value
  }
}

#include <IRremoteESP8266.h>
#include <IRrecv.h>
#include <IRutils.h>

const uint16_t RECV_PIN = 5;  // GPIO5 for ESP32

IRrecv irrecv(RECV_PIN);
decode_results results;

void setup() {
  Serial.begin(115200);
  irrecv.enableIRIn();  // Start receiver
  Serial.println("IR Receiver Ready...");
}

void loop() {
  if (irrecv.decode(&results)) {

    Serial.print("IR Code: ");
    Serial.println(results.value, HEX);

    // Optional: detailed decode info
    Serial.println(resultToHumanReadableBasic(&results));

    irrecv.resume();  // Receive next value
  }
}

How It Works

1. TSOP sensor receives IR signal from remote
2. Converts IR pulses into digital signals
3. ESP32 reads signals using IRremoteESP8266 library
4. Decoded IR code is displayed on Serial Monitor

Sample Output

As you follow this TSOP ESP32 tutorial, keep in mind the importance of precise instructions to achieve the best results.

IR Code: 1FE48B7
Protocol: NEC, Address: 0x0, Command: 0x45

IR Code: 1FE48B7
Protocol: NEC, Address: 0x0, Command: 0x45

Tips for Best Performance

• Use stable GPIO pins (avoid GPIO0 during boot)
• Add 100nF capacitor between VCC & GND
• Avoid direct sunlight or IR interference
• Use good quality remote

Applications

The effectiveness of your project will greatly benefit from the insights provided in this TSOP ESP32 tutorial.

• Home automation systems
• IR-based wireless control
• Smart appliances control
• Robotics and IoT projects

FAQs

By utilizing this TSOP ESP32 tutorial, you will bring your ideas to life in the IoT space.

1. Can TSOP work with ESP32?

Yes, TSOP works perfectly with ESP32 at 3.3V logic.

2. Which library is used?

Understanding the protocol used by your IR remote is also crucial. Most remotes use protocols like NEC or RC5, which define how the data is structured. Familiarizing yourself with these protocols can significantly enhance your ability to troubleshoot and implement infrared communication effectively.

Use IRremoteESP8266 by David Conran (works with ESP32 too).

In addition to home automation, the TSOP IR sensor can be used in various innovative projects. For example, you can create a DIY universal remote control that works with multiple devices. It’s a great way to extend the functionality of your projects. You can also integrate the TSOP sensor with other sensors to create a more complex IoT system that reacts based on various inputs.

3. Why no output?

• Check wiring
• Verify GPIO pin
• Check remote battery

Conclusion

Interfacing a TSOP IR sensor with ESP32 is simple and powerful for building remote-controlled IoT projects. With minimal hardware and easy code, you can decode and use IR signals in your applications.

In this TSOP ESP32 tutorial, we will also explore the practical applications of using the TSOP IR sensor with the ESP32. For instance, consider a simple home automation project where you can control lights or fans using an IR remote. This is not only a fun project but also a practical one that can enhance your living space’s automation. By implementing this project, you will gain hands-on experience with IR technology and microcontroller programming.

Furthermore, troubleshooting is an essential aspect of working with electronic components. If you face issues while setting up the TSOP sensor, ensure that your ESP32 is properly powered and that the sensor is correctly wired. It helps to have a multimeter to check the connections and voltage levels. Each of these troubleshooting steps will improve your understanding of the components and their operation.

4. What if my ESP32 does not receive signals?

If your ESP32 is not receiving signals from the TSOP sensor, first check if the IR remote is functioning. Use a smartphone camera to see if the IR LED on the remote lights up when a button is pressed. If it doesn’t, replace the remote’s batteries. Ensure also that the TSOP sensor is oriented correctly toward the remote.

Lastly, ensure you revisit this TSOP ESP32 tutorial whenever you need guidance or reference.

With the knowledge gained from this TSOP ESP32 tutorial, you are well-equipped to tackle any related challenges.

In conclusion, this TSOP ESP32 tutorial is your gateway to mastering IR technology and expanding your skills in the field.

This TSOP ESP32 tutorial will support you in creating versatile and adaptive projects.

Be sure to reference this TSOP ESP32 tutorial for any future projects or enhancements you wish to make.
